Sale!

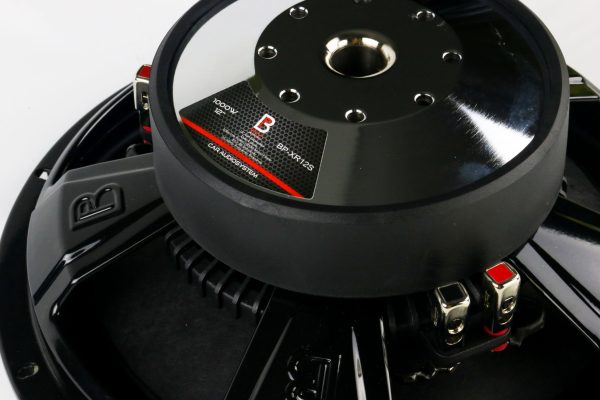

Bully Performance Audio BP-XR12S | 12″ Shallow Mount Subwoofer 500 Watts RMS | Professional Series | Dual Voice Coil

Original price was: $170.00.Current price is: $150.00.


Bully Performance Audio BP-XR12S | 12" Shallow Mount Subwoofer 500 Watts RMS | Professional Series | Dual Voice Coil

  • High Performance 12" Shallow Mount Subwoofer 500 Watts RMS
  • 12-inch Dual 4 Ohm Shallow Mount Subwoofer for Trucks and Small Enclosures
  • Frequency response: 35 Hz - 300 Hz | Sensitivity: 86.5 dB
  • Overall Dimensions: 314 x 122 mm
  • Dual Voice Coil
Specifications
General Data BP-XR12S UNIT
Overall Dimensions 314 x 122 mm
Nominal Power Handling 500 W
Transient Power 10ms 1000 W
Sensitivity 86.5 dB
Frequency Response 35-300 Hz
Cone Material paper
Net Weight 6 kg
Electrical Data
Nominal Impedance Dual 4.0 Ohm
DC Resistance Dual 3.2 Ohm
Voice Coil and Magnet Parameters
Voice Coil Diameter 61.1 mm
Voice Coil Height 28 mm
HE Magnetic Gap Height 10 mm
Max. Linear Excursion 9 mm
Voice Coil Bobbin Aluminium
Voice Coil Wire Copper
Number of Layers 4 Layers
Magnet System Type High Flux Ferrite
BL Product 9.33 N.A
T-S Parameters
Suspension Compliance Cms 0.088
Mechanical Q Factor Qms 5.8
Electrical Q Factor Qes 0.89
Total Q Factor Qts 0.77
Moving Mass Mms 210.7
Eq. Cas Air Load (Liters) VAS 32.8 Liter
Resonant Frequency Fs 35 Hz
Effective Piston Area SD 510.7 cm^2
